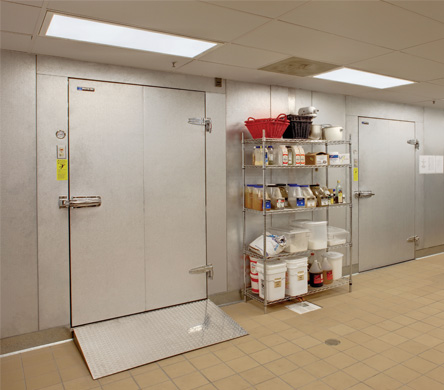

Master-Bilt Bilt2 Spec Custom Designed Walk-In Coolers & Freezers

Item Number: BILT2 SPEC

From a minimum 6 x 6 foot size to the more elaborate 10,000 square foot warehouses, Master-Bilt walk-ins can be customized to provide the right amount of temperature-controlled space. Basic modular panel sizes and heights, as well as many options, offer the right flexibility to fulfill any design requirement.

Request Quote More Information

Product Highlights
Resource Center

Practically unlimited range of widths and heights
Panels feature foamed-in-place polyurethane insulation for highest R-value
Standard panel is 4 inches thick with optional 5-inch and 6-inch thicknesses available
Master-Bilt can provide single span ceiling panels up to nominal 24 ft. long (23'1"actual) in 6-inch thickness.
Doors feature unique adjustable hinge backing plate for leveling
Doors feature two cam-lift hinges which are spring-loaded for an easier, more positive closure
Hydraulic door closure
Dial thermometer
Vapor proof light
Magnetic gasket
Adjustable double wiper gaskets
Pressure relief port on freezer doors
Heated frames on freezer door
Floors, when required, are standard with a .080 textured aluminum surface for added slip-and-fall protection
Reinforced floors and structural floors capable of supporting 5000 lbs evenly distributed are available
